GS-35B Hombrew HF Amp

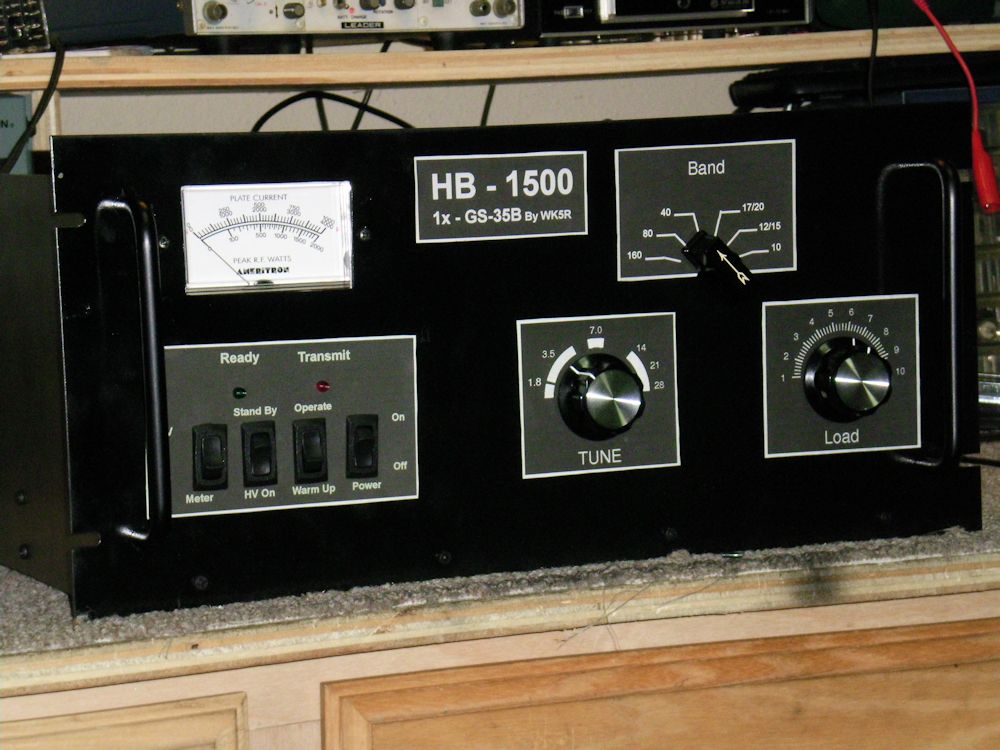

I made the decals on the front panel myself using Meter Meter Dial Program
by Jim Tonne, and Microsoft Paint Shop Pro X4 on full page mailing labels.

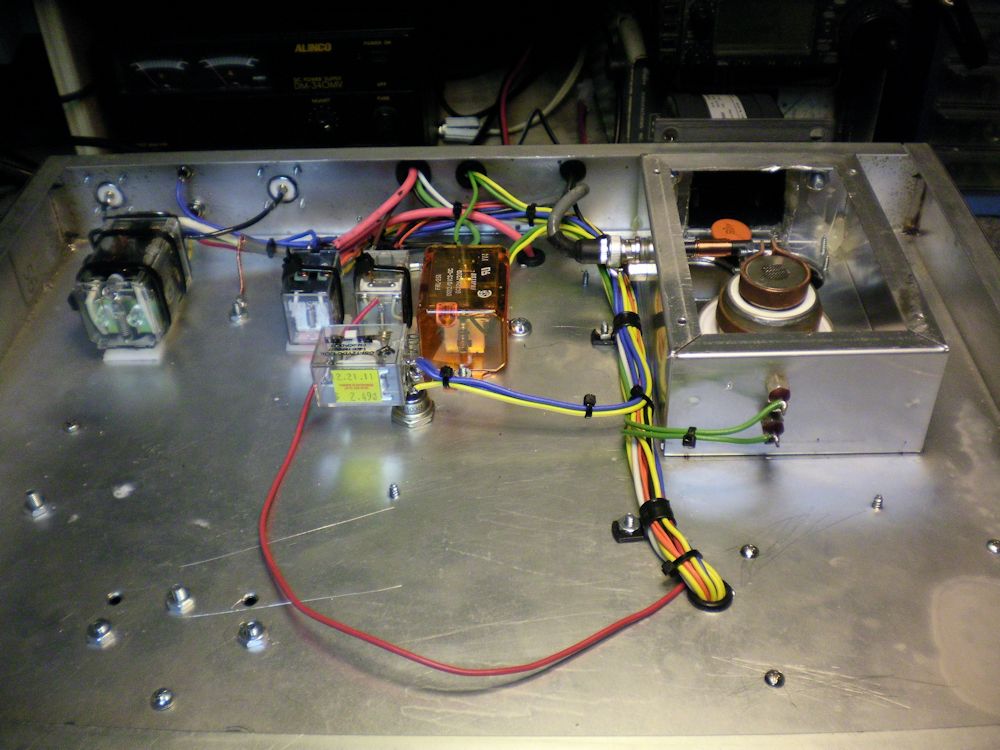

This is a picture of the bottom of the amp, showing all the control relays
TR relay, the filament and cathode clamps, and bias conections I only need.
fillament choke and the red wire conects to the alc board when I build it.

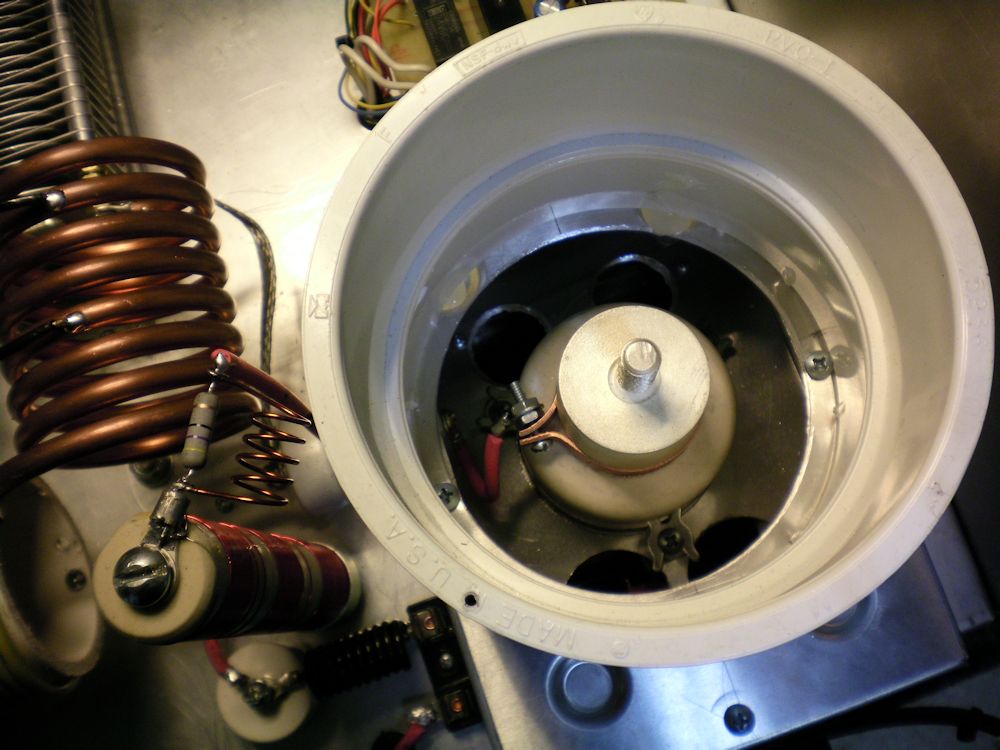

This is a picture looking down through the chimney of the tube, it shows
the high voltage clamp, the plate choke, the vhf choke and the 10/15/20 meter
tank coil, and the parasitic choke.

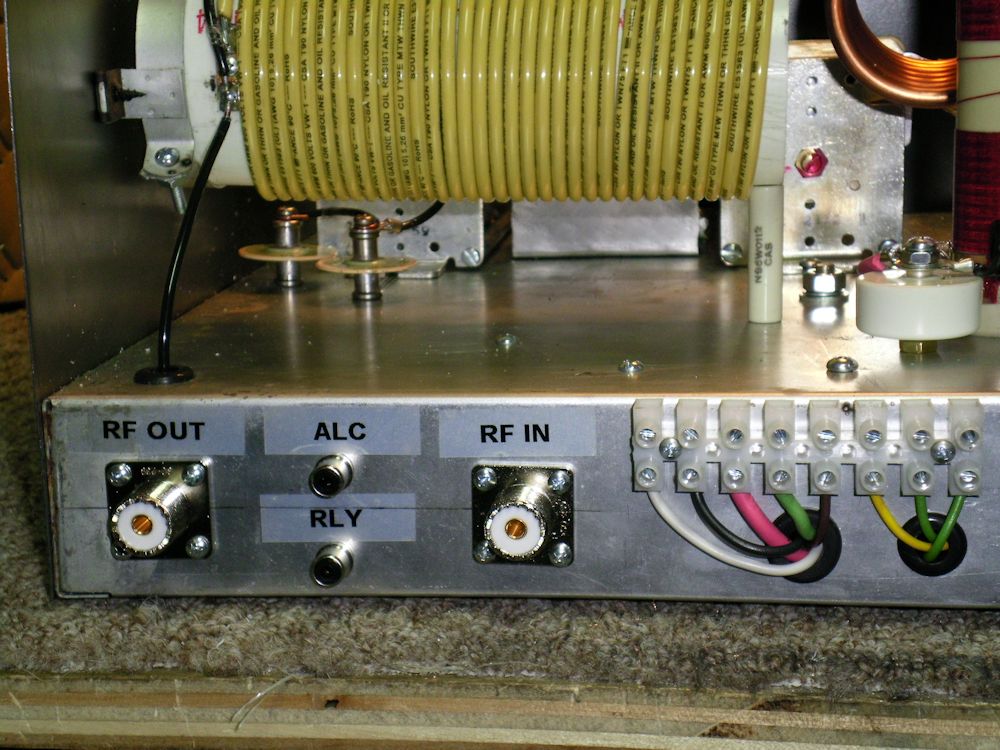

This is a picture of the back of the amp, showing the antenna conectors, alc and.
relay conectors and back of the main tank coil and power supply conector.

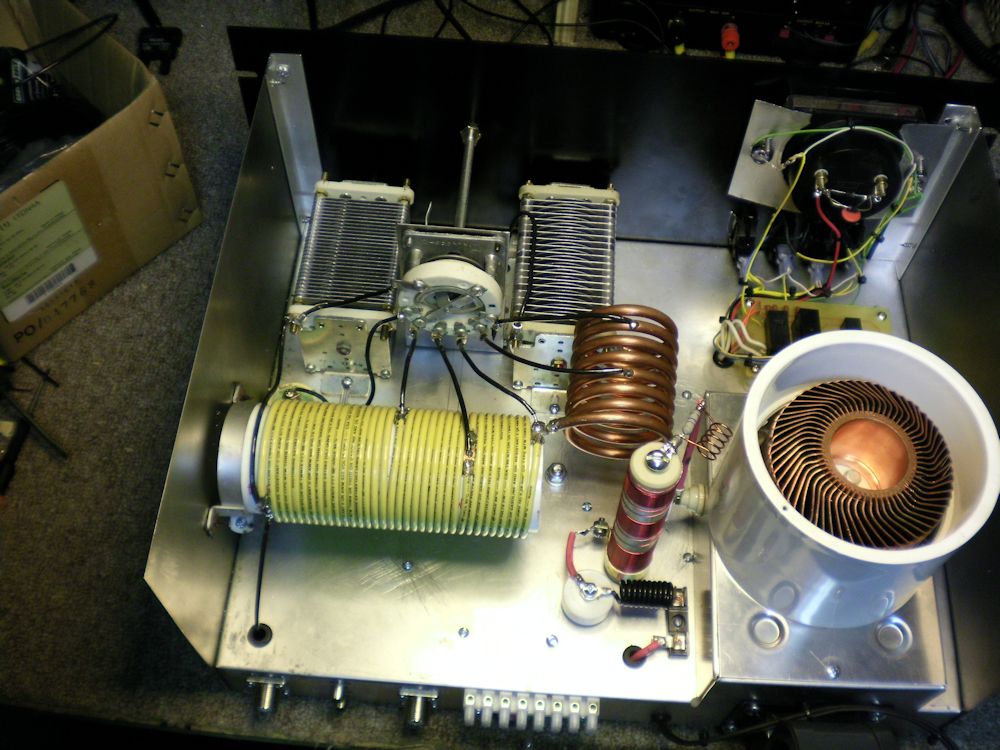

This is a picture looking down from the top of the amp, it shows the entire tank
circuit, tube chimney and metering circuit board that I built..

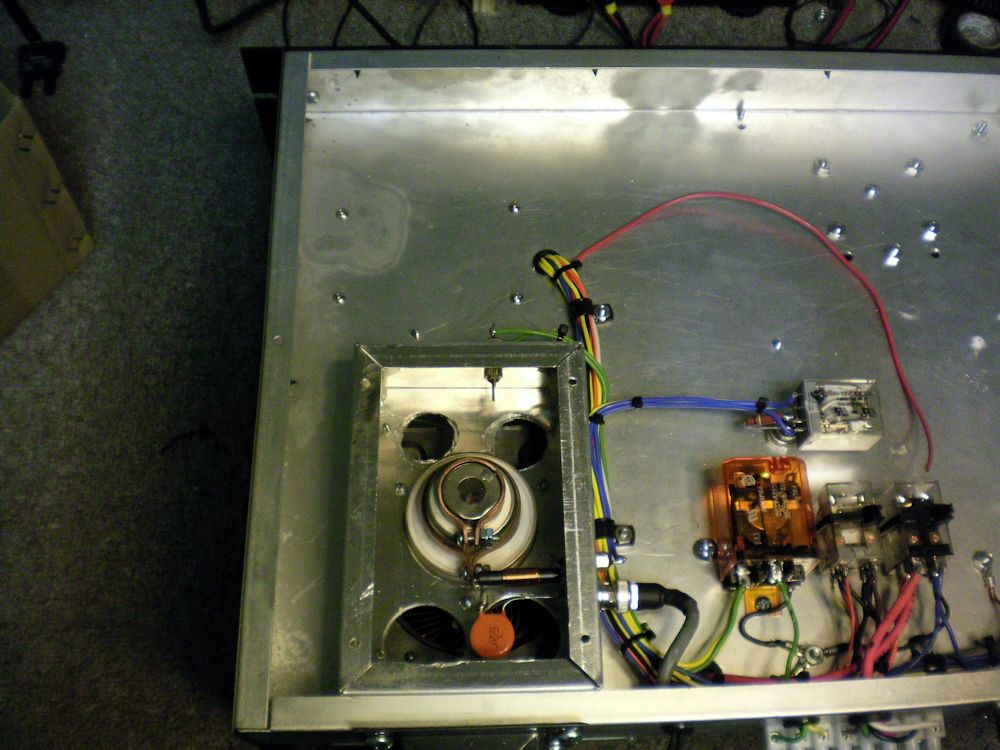

This picture is a closer look of the cathode compartment,and input drive conections.
